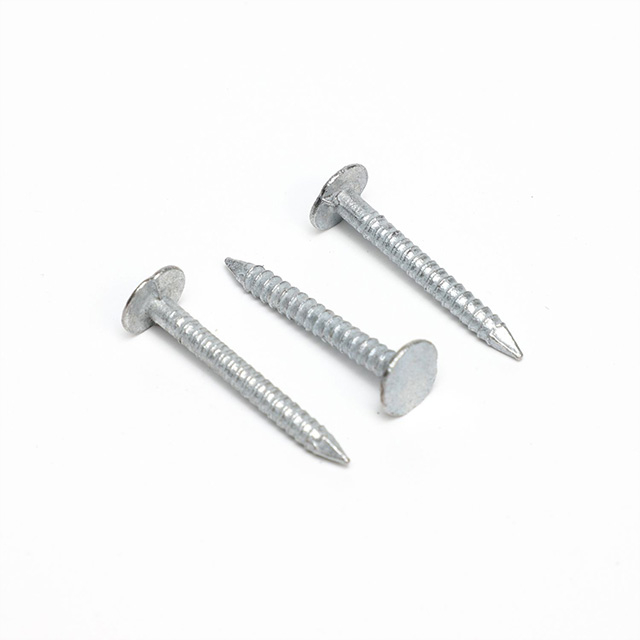

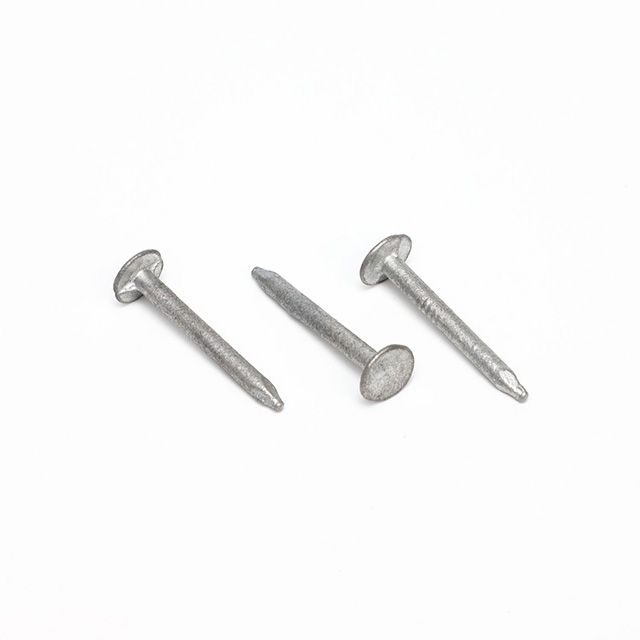

As a leading manufacturer and global supplier of high-performance fasteners, we provide premium Hot-Dip Galvanized (HDG) roofing nails engineered for maximum durability in demanding outdoor environments. These fasteners are specifically designed to secure asphalt shingles, insulation boards, and felt underlayment to wood substrates. By utilizing a specialized thermal diffusion process, we ensure each nail possesses a thick, uniform zinc coating that exceeds standard atmospheric corrosion requirements. This makes them the preferred choice for professional contractors who prioritize structural integrity and long-term weather resistance in residential and industrial roofing projects.
The tactile quality of our Hot-Dip Galvanized roofing nails is immediately evident through their signature matte, slightly textured silver-gray finish. This characteristic "rugged" surface is a hallmark of the genuine hot-dip process, providing a superior mechanical bond with both the roofing material and the wooden deck. Unlike smooth, shiny electro-galvanized alternatives, our nails feel substantial and grippy in the hand, a direct result of the metallurgical reaction between the molten zinc and the high-carbon steel core. When driven into a substrate, the sound is crisp and solid, indicating a clean entry without the risk of the head snapping or the shank buckling under pressure.
From an engineering perspective, the craftsmanship focuses on the seamless transition between the oversized umbrella head and the reinforced shank. This design is critical for preventing "pull-through" during high-wind events, where the pressure on the shingle is at its peak. The diamond point is precision-ground to a razor-sharp angle, allowing the fastener to pierce multiple layers of heavy-duty roofing felt and architectural shingles without tearing the internal fiberglass mat. This attention to detail ensures that the primary waterproof barrier remains intact, extending the overall lifecycle of the roofing system and reducing maintenance costs for the end-user.
| Parameter | Specification Details |
| Product Name | Hot-Dip Galvanized (HDG) Roofing Nail |
| Material | High-Quality Carbon Steel (Q195 / Q235) |
| Surface Treatment | Hot-Dip Galvanized (ASTM A153 Class D Compliance) |
| Head Type | Large Flat Head / Umbrella Head |
| Shank Type | Smooth Shank, Ring Shank (Annular), Screw Shank |
| Shank Diameter | 8 BWG to 13 BWG (0.083" - 0.165") |
| Product Length | 1 inch to 4 inches (25mm - 100mm) |
| Point Type | Sharp Diamond Point |
| Zinc Coating Weight | ≥ 320 g/m² (Customizable per client requirement) |
| Standard Packaging | 20kg/25kg per Carton; 5lb/10lb Plastic Tubs; or Bulk Palletizing |
The hot-dip galvanizing process creates a multi-layered protection zone. The outer layer of pure zinc provides sacrificial protection, while the inner zinc-iron alloy layers offer extreme hardness and abrasion resistance. Even if the surface is slightly scratched during installation, the surrounding zinc continues to protect the exposed steel through cathodic action.
Available in ring shank and screw shank configurations, these fasteners are designed to stay put. The ring shank acts like a series of barbs, locking into the wood fibers and increasing the force required to pull the nail out by over 40% compared to smooth-shank nails. This is vital for areas prone to hurricanes or heavy seismic activity.
While our loose nails are perfect for hand-driving, our manufacturing tolerances ensure they meet the rigorous specifications required for modern pneumatic equipment. The uniform head diameter and shank straightness prevent frequent jamming and "misfires" in high-speed production environments, allowing for a smoother workflow on the job site.
The wide umbrella head is not just for security; it acts as a secondary gasket. When driven flush, the large surface area distributes the clamping force evenly across the shingle, creating a tight seal that prevents water from seeping into the nail hole, which is the most common point of failure in older roofs.
True hot-dip galvanizing involves submerging the steel nails into a bath of molten zinc at temperatures reaching approximately 450°C (840°F). This isn't just a surface coating; it is a chemical transformation. The heat allows the zinc to migrate into the steel, creating four distinct alloy layers. This bond is so strong that it will not flake or peel, even when the nail is subjected to the high-impact forces of a hammer or a pneumatic driver.
For projects located in coastal regions or areas with high industrial pollution, standard fasteners will often fail within a few years. Our HDG nails are tested to withstand the harsh effects of salt spray and acid rain. The thickness of the zinc coating—typically several times thicker than electro-galvanized or "flash" coated nails—ensures a service life that often matches or exceeds the 30-year warranty of premium architectural shingles.
The engineering behind our ring-shank roofing nails focuses on the "wood-locking" effect. As the nail enters the lumber, the wood fibers are forced into the deep grooves of the rings. Once the wood fibers settle, they act as a physical wedge. This is particularly important for roofs that experience significant thermal expansion and contraction, which can cause "nail pop" in inferior fasteners.
We utilize specific grades of carbon steel that balance hardness with ductility. If a nail is too hard, it becomes brittle and can snap under shear stress. If it is too soft, the head will deform. Our fasteners are heat-treated to ensure they maintain their structural profile even when driven through hardened knots in plywood or OSB decking.
Modern pressure-treated wood often contains high concentrations of copper, which is highly corrosive to standard steel. Our Hot-Dip Galvanized nails are fully compatible with ACQ, MCQ, and CCA treated lumber. The heavy zinc barrier prevents the electrochemical reaction that leads to rapid fastener degradation, ensuring the structural safety of the roof deck for decades.
Whether you are installing traditional asphalt shingles, slate, or synthetic composite tiles, the geometry of these nails provides a universal solution. The sharp diamond point reduces wood splitting, which is essential when working near the edges of a roof or when using thinner, modern sheathing materials.
Our production facility utilizes automated cold-heading and thread-rolling technology to ensure that every nail in a 25kg carton is identical to the next. We eliminate the "rejects" that often plague lower-quality bulk shipments, ensuring that your installation team spends less time dealing with defective fasteners and more time completing the project.
Every batch of Hot-Dip Galvanized nails undergoes rigorous testing before shipment. This includes salt spray testing for corrosion resistance, tensile strength verification, and coating thickness measurements using magnetic gauges. We provide detailed mill test reports upon request, giving you the confidence that the materials you are using meet international building codes.
We understand that project timelines are sensitive. Our logistics team is experienced in handling high-volume international shipments, ensuring that packaging is reinforced for maritime transit and that documentation is prepared accurately for seamless customs clearance. We act as a silent partner in your business growth, providing the consistent quality needed to maintain your reputation.
Electro-galvanized nails have a thin, smooth, and shiny layer of zinc applied via an electric current, typically providing minimal corrosion resistance. Hot-dip galvanized nails are submerged in molten zinc, resulting in a much thicker, duller, and more durable coating that is suitable for permanent outdoor exposure and contact with treated lumber.
Yes. Our Hot-Dip Galvanized nails meet the requirements for use in pressure-treated wood. The zinc coating thickness is designed to withstand the corrosive chemicals used in modern wood preservation treatments, preventing the fastener from rusting from the inside out.
Our HDG roofing nails are manufactured to meet or exceed the ASTM A153 Class D standard for hardware that is hot-dip galvanized. This ensures a consistent zinc weight and quality that is recognized by building inspectors and architectural firms globally.
A ring shank provides significantly higher withdrawal resistance. On a roof, wind creates "uplift" forces that try to pull the shingles and nails out of the wood. The rings lock into the wood fibers, making it much harder for the nail to "pop" or pull out over time, which is a major cause of roof leaks.
For a typical single-layer asphalt shingle roof over a 3/4-inch wood deck, a 1-1/4 inch nail is the industry standard. This ensures the nail fully penetrates the shingle and the roof deck for maximum holding power. For thicker shingles or reroofing over an existing layer, 1-1/2 inch or 1-3/4 inch nails may be required.
