Product Introduction

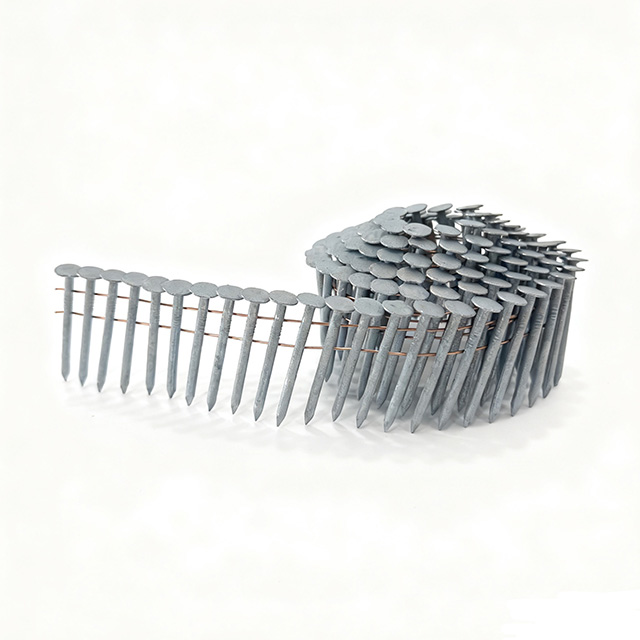

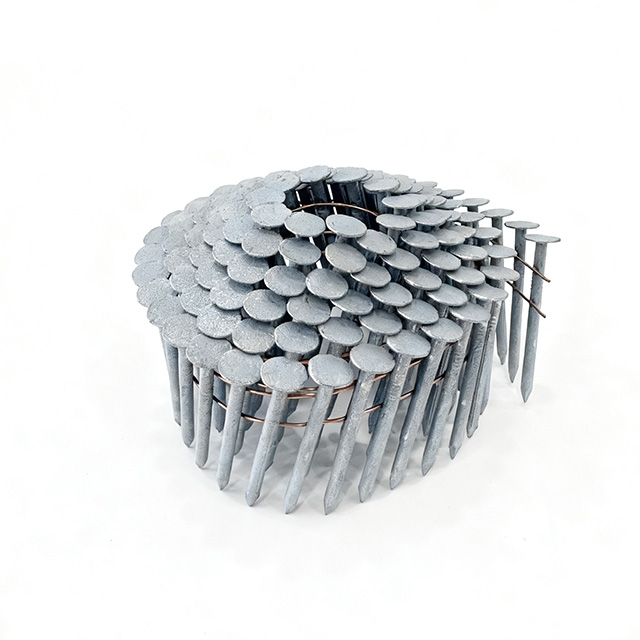

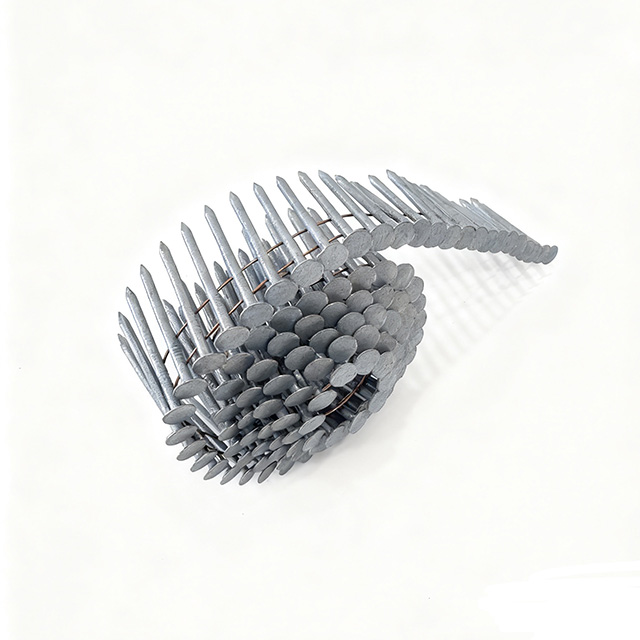

It is a roll packed nail made of high-quality low-carbon steel such as Q195 and Q235, which forms a thick zinc layer on the surface through hot-dip galvanizing process. It is matched with a large umbrella shaped nail cap with a diameter of 8.8mm-9.2mm, a nail body diameter of 2.96-3.05mm, a length of 3/4 inch -1-3/4 inch, and various nail body types such as bare body and ring pattern. It is compatible with roll nail guns such as CN55-CN130 and can achieve continuous and efficient operation. It is a commonly used fastening accessory in the industrial and construction fields.
Product Advantage
1. Super anti-corrosion and durable: The zinc layer formed by hot-dip galvanizing has a thickness of 35-120g/m ², which can firmly adhere to the nail body, resist the erosion of outdoor wind, rain, and humid environments, and even achieve a service life of more than 50 years without repair in some scenarios, far exceeding the anti rust ability of ordinary electroplated nails.
2. Strong fastening without detachment: The large umbrella shaped nail cap increases the pressure bearing area with the workpiece, which can prevent the nail body from getting stuck in the material or pulling off. Combined with special nail body designs such as ring patterns, it can further enhance the biting force, reduce the risk of workpiece loosening, and adapt to easily damaged materials such as cork and plywood.
3. Efficient homework without nail jamming: The roll up design is compatible with the roll up nail gun, eliminating the need for manual nailing one by one, and is made according to international standard sizes, making it less likely for the gun to get stuck during use. Compared to loose nails, it can significantly improve construction efficiency and adapt to large-scale work scenarios.
4. High cost-effectiveness and wide adaptability: Low carbon steel substrate ensures strong tensile strength of the nail body, while the hot-dip galvanizing process is mature, and the unit cost is controllable under mass production; And with diverse specifications, it can match workpieces of different thicknesses, without picking gun types, and is compatible with most mainstream nail guns.

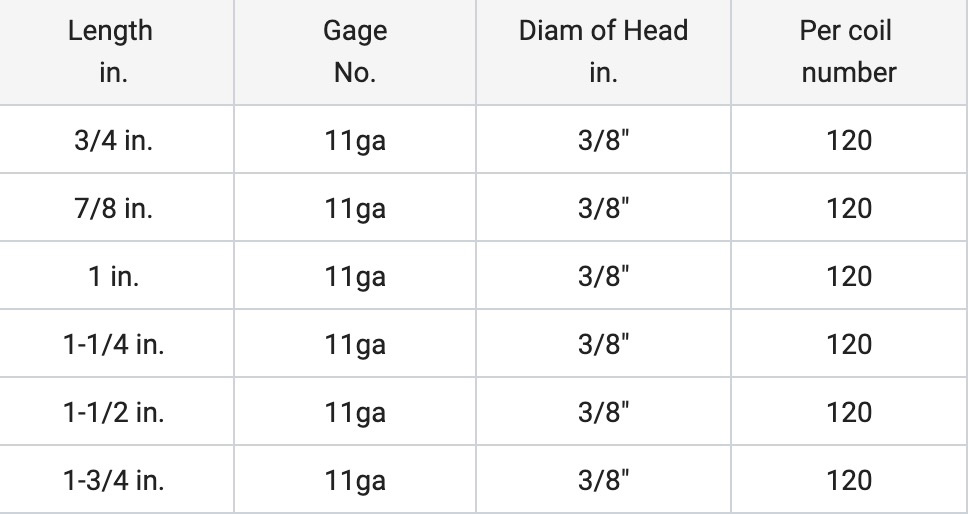

Technical Parameters
Product Uses
1. In the field of packaging and transportation, it is the core fastener for the production of wooden pallets, wooden packaging boxes, and cable reels, which can cope with the bumps and impacts during the transportation of goods and ensure the stability of the packaging structure.
2. In the field of construction, it is suitable for outdoor projects such as building wooden houses, laying roofs, installing fences and walkways, and can also be used for fixing suspended ceilings and walls. The zinc layer can resist the harsh environment of outdoor parts of buildings.
3. Furniture and other fields: can be used for solid wood furniture assembly, sofa frame reinforcement, etc., which can avoid wood cracking while ensuring firm connection; It can also be used for fixing greenhouse frames, splicing wooden farming tools, and other scenarios, adapting to various wooden fastening needs.
