The absolute best choice for siding installation is utilizing high-quality stainless steel or hot-dipped galvanized fasteners, specifically configured as ring-shank or screw-shank wire collation variants, which are most efficiently deployed via high-density Coil Nails to ensure consistent depth penetration, maximum withdrawal resistance, and superior corrosion protection.
In the following comprehensive technical guide, we will break down the precise engineering parameters, material compositions, and installation mechanics required to choose the perfect siding fasteners. From comparing specific metal alloys to analyzing the unique structural demands of vinyl, wood, fiber cement, and metal siding panels, this article serves as the definitive reference manual for B2B buyers, procurement managers, and construction contractors aiming to eliminate fastener failure and optimize on-site installation workflows.
Section | Summary |
What Kind of Nails for Siding? | An in-depth technical analysis of general siding fasteners, focusing on material chemistry, shank geometry, and why pneumatic wire-collated systems provide the highest holding power across various cladding materials. |
What Kind of Nails for Vinyl Siding? | A specialized breakdown of the unique physical requirements of vinyl cladding, highlighting the necessity of smooth or ring-shank styles, specific head dimensions, and the crucial rule of leaving a thermal expansion gap. |
Start Your Project With Us | An introduction to industrial manufacturing capabilities, highlighting customizable high-performance fastener options, strict quality control protocols, and supply chain solutions for global B2B procurement. |
For general exterior siding applications, professional contractors must use high-capacity, corrosion-resistant fasteners like hot-dipped galvanized or stainless steel ring-shank variants, ideally packaged as high-density Coil Nails to ensure efficient pneumatic installation and long-term holding power in variable weather conditions.
Exterior siding is continuously subjected to harsh environmental elements, including rain, high humidity, temperature fluctuations, and UV radiation. Consequently, the chemical composition of the fastener is the first line of defense against structural degradation. Standard carbon steel nails will rapidly oxidize when exposed to moisture, leading to structural failure and unsightly black rust streaks that ruin the aesthetic value of the cladding. To prevent this, industrial buyers specify hot-dipped galvanized steel or stainless steel alloys (typically Grade 304 or Grade 316).
Hot-dipped zinc coatings provide a thick, sacrificial protective layer that protects the underlying steel from moisture. For high-salinity coastal environments or areas utilizing heavy chemical treatments in adjacent wood framing, stainless steel fasteners represent the gold standard, offering absolute resistance to oxidation and chemical pitting.
The physical design of the nail shank directly determines its withdrawal resistance, which is the mechanical force required to pull the nail out of the wood sheathing and framing studs. Siding panels are subject to strong wind uplift forces and thermal movement, meaning smooth-shank nails can gradually back out over time. To combat this issue, industrial siding projects rely heavily on ring-shank and screw-shank configurations.
Ring-shank designs feature a series of raised ridges along the shaft that lock directly into the wood fibers, acting like a wedge and increasing holding power by up to 300 percent compared to smooth shanks. When these engineered shanks are manufactured into pneumatic systems, installation speeds increase exponentially without sacrificing mechanical holding power.
In commercial construction, speed and consistency are just as critical as raw material quality. Hand-nailing thousands of square feet of siding introduces human error, such as uneven depth control and bent fasteners. Utilizing pneumatic framing and siding nailers loaded with high-density wire-collated fastener rows eliminates these inefficiencies.

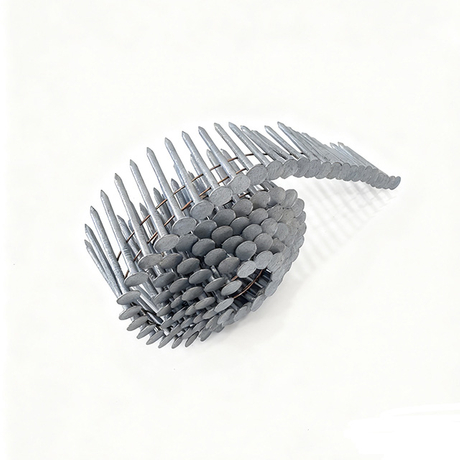

Modern high-speed pneumatic fastening lines rely on high-quality Coil Nails because they allow installers to drive up to 300 fasteners continuously before reloading, which drastically reduces downtime on scaffolding. This workflow optimizes labor costs while guaranteeing that every single fastener is driven at a precise 90-degree angle to the substrate, maximizing the wind-load capacity of the building envelope.
Siding Material Layer: The fastener passes through the outermost exterior cladding panel.
Sheathing Layer: The fastener penetrates the intermediate structural plywood or OSB wall sheathing.
Structural Framing Stud: The fastener must drive a minimum of 1-1/4 inches (32mm) into the solid wood framing stud to establish adequate structural shear strength.
Parameter | Industrial Standard Recommendation | Performance Impact |
Material Composition | Grade 304/316 Stainless Steel or Hot-Dipped Galvanized | Eliminates rust streaks and premature structural oxidation |
Shank Type | Ring-Shank or Deep Screw-Shank | Maximizes mechanical grip and prevents wind-induced back-out |
Shank Diameter | 0.082 inch to 0.092 inch (2.1mm to 2.3mm) | Optimizes shear strength without splitting exterior wood studs |
Head Style | Full Round Flat Head (0.22 inch to 0.25 inch diameter) | Prevents the fastener from pulling through the cladding panel |
Collation Type | Wire-Weld or Plastic Banded 15-Degree Tilt | Ensures flawless feeding in high-speed pneumatic siding guns |
Vinyl siding installation requires specialized fasteners with a large flat head, a minimum wire gauge of eleven, and a smooth or specialized ring-shank design, which are best utilized via pneumatic wire-weld Coil Nails to ensure consistent, non-restricted clearance within the hanging slots.
Vinyl cladding is unique because it cannot be tightly fixed or nailed flat against the structural wall sheathing. Polyvinyl chloride (PVC) panels expand and contract significantly as outdoor temperatures change throughout the year. A standard 12-foot vinyl siding panel can change in total length by up to 3/4 of an inch between freezing winter temperatures and peak summer heat.
To accommodate this constant physical movement, vinyl siding is engineered with elongated, horizontal nailing slots along the top edge of each panel. Fasteners must be driven precisely into the center of these slots, leaving a mandatory gap between the underside of the nail head and the vinyl flange.
The physical dimensions of the fastener are critical to ensuring the vinyl panel can slide freely along the horizontal axis. The nail head must have a minimum diameter of 5/16 of an inch (roughly 8mm) to ensure that the panel cannot blow off the wall during high-wind events. Furthermore, the shank must be long enough to pass through the vinyl flange, through the exterior insulation layer, and penetrate at least 1-1/4 inches into solid wood structural framing.
If a contractor uses standard roofing nails or short fasteners, the siding will lack the necessary shear strength. Smooth or fine ring-shank designs are preferred here because they reduce the risk of catching or snagging the vinyl slot edges during thermal cycles.
When deploying pneumatic tools for vinyl installation, adjusting the air pressure depth-of-drive limiter is an absolute necessity. If a nail is over-driven, it will pin the vinyl panel tightly against the wall, causing the siding to buckle, warp, and crack as temperatures rise. Conversely, if a nail is under-driven, the panel will rattle in the wind and lack proper structural support.
By integrating specialized vinyl nosepiece adapters with high-performance Pneumatic Wire-Collated Nails, commercial installers can maintain a precise 1/32 of an inch clearance space between the nail head and the vinyl surface. This precise gap keeps the panel secure while allowing for necessary thermal movement.
Incorrect Alignment (Nail driven to the far left or far right of the slot): This restricts horizontal panel movement, creating built-up mechanical stress and causing panel buckling.
Correct Alignment (Nail driven dead center of the slot): This allows free horizontal sliding movement during thermal cycles, ensuring a flat, stable, and wave-free facade.
Center the Fastener: Always drive the nail directly into the middle of the manufactured horizontal nailing slot. Driving the fastener into the far ends of the slot restricts panel movement and causes immediate buckling.
Maintain the Clearance Gap: Leave a clearance gap of 1/32 of an inch (approximately 1mm) between the nail head and the siding flange. Never drive the nail head flush or tight against the vinyl material.
Drive Straight: Ensure every fastener enters the wall at a perfect 90-degree perpendicular angle. Crooked or slanted nails distort the nailing slot and restrict the natural expansion path of the PVC panel.
Avoid Face Nailing: Never drive a nail directly through the visible face of a vinyl siding panel. Piercing the solid vinyl skin restricts movement, voids manufacturer warranties, and creates immediate paths for water intrusion.
Partnering with a dedicated industrial fastener manufacturer provides bulk supply procurement managers with access to customizable premium steel solutions, certified hot-dipped zinc coatings, and high-capacity wire-collated Coil Nails engineered to fit all commercial pneumatic equipment lines.
In mass-scale commercial construction and global wholesale distribution, fastener consistency determines project profitability. Variations in wire diameter, improper zinc coating thickness, or poor welding on collation wires lead to frequent pneumatic tool jams and structural failures on the job site. Industrial-scale manufacturing operations address these issues by sourcing premium carbon steel and stainless steel wire rods, which undergo rigorous cold-drawing, precision heading, and uniform thread-rolling processes.
Advanced heat-treatment protocols ensure that every siding nail possesses the necessary tensile strength and ductility to withstand heavy impacts without shearing, even when driven into dense engineered lumber or pressure-treated structural studs.
Long-term structural reliability requires uniform coating protection across every batch of fasteners. Automated hot-dip galvanizing lines immerse cleaned steel blanks into molten zinc baths maintained at precise temperatures, creating a multi-layered iron-zinc alloy bond topped by a pure zinc exterior barrier. This specialized industrial process ensures a minimum zinc thickness that complies with international building code standards for exterior use.
For projects requiring the highest level of protection, strict chemical passivation treatments are applied to stainless steel lines. This process removes trace free-iron particles from the surface, enhancing the chromium oxide layer to deliver unmatched resistance against sea spray, industrial pollution, and acidic wood preservatives.
Managing material logistics for large-scale infrastructure projects requires reliable production capacities and efficient supply chain integration. Commercial buyers can streamline operations by ordering high-durability Industrial Construction Fasteners packed in heavy-duty, moisture-resistant cartons and reinforced wooden pallets designed for long-distance maritime shipping.
With production lines capable of manufacturing customizable shank lengths, specific ring-thread depths, and specialized 15-degree wire-weld arrays, global procurement teams can easily match material supplies with precise regional building codes and contracting requirements.
Raw Steel Wire Input: Premium carbon steel or stainless steel raw rods are selected and fed into the production system.
Cold Heading and Thread Rolling: The wire is cut, cold-formed into specific head profiles, and rolled to create precise ring or screw shanks.
Hot-Dip Galvanizing: The raw fasteners are treated in molten zinc baths or chemically passivated to create an optimal corrosion barrier.
Automated Optical Inspection: Advanced digital sorting machines inspect the batches for dimensional accuracy, ensuring zero defects in wire welding.
Moisture-Proof Packaging: Finished products are sealed in industrial-grade, moisture-resistant cartons and palletized for secure international logistics.
Tailored Technical Customization: Specify precise manufacturing parameters, including customized shank configurations, specialized head branding, and varied wire diameters to fulfill unique regional building regulations.
Certified Testing Protocols: Receive comprehensive material test reports with every shipment, verifying steel chemistry, zinc coating weight, and wind-uplift shear test performance.
Optimized Packaging: Order bulk warehouse pallets or retail-ready private label packaging designed with moisture barrier protections to safeguard stock during long-term storage.
Consolidated Global Logistics: Partner with experienced export teams to coordinate streamlined customs clearance, flexible container load scheduling, and reliable on-site delivery.
Achieving a durable, long-lasting exterior cladding installation depends on choosing the right fastening components. As detailed throughout this guide, selecting the appropriate siding nail involves matching the specific material properties of the cladding with the correct metal alloy and shank geometry. Utilizing standard carbon steel or smooth-shank nails on exterior facades introduces unnecessary risks, including loose panels, wind damage, and rust stains. For professional contractors and industrial material suppliers, standardizing on premium stainless steel or hot-dipped galvanized ring-shank fasteners is the most effective way to protect the building envelope.
